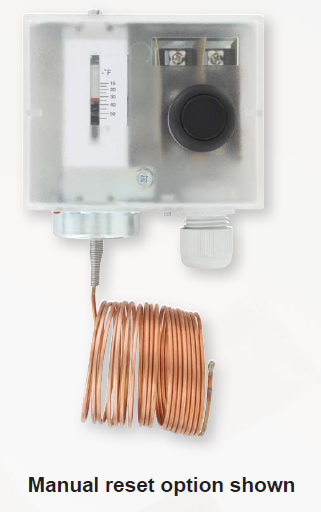

SERIES DFS2 | LOW LIMIT FREEZE PROTECTION SWITCH

The Series DFS2 Low Limit Freeze Protection Switch protects cooling coils in air handler systems by preventing frost build up. The thermostat and its capillary sensing element provide an antifreeze function by sensing the lowest temperature along any one foot section of capillary. The DPDT manual or automatic reset relays signal the building management system as well as cut off the fan. The Series DFS2 will detect temperature drops below the fixed safety value (set point) which can be set as low as 34°F (1°C) utilizing the visual set point indicator and set point screw.

FEATURES/BENEFITS
• Vapor-filled copper capillary sensing element
• Joint spring protector at capillary-bellow connection
• Set point safety-lock protection and simple adjustment
• Easy installation and wiring
• Automatic and manual reset


APPLICATIONS
• HVAC Equipment
• Heat Exchangers and Cooling coils
• Reservoirs
